Carrier Takeoff and Recovery Diagram used by Russian Naval Aviators v2.0
We are lacking naval operation procedures for the Kuznetsov and the Su-33.

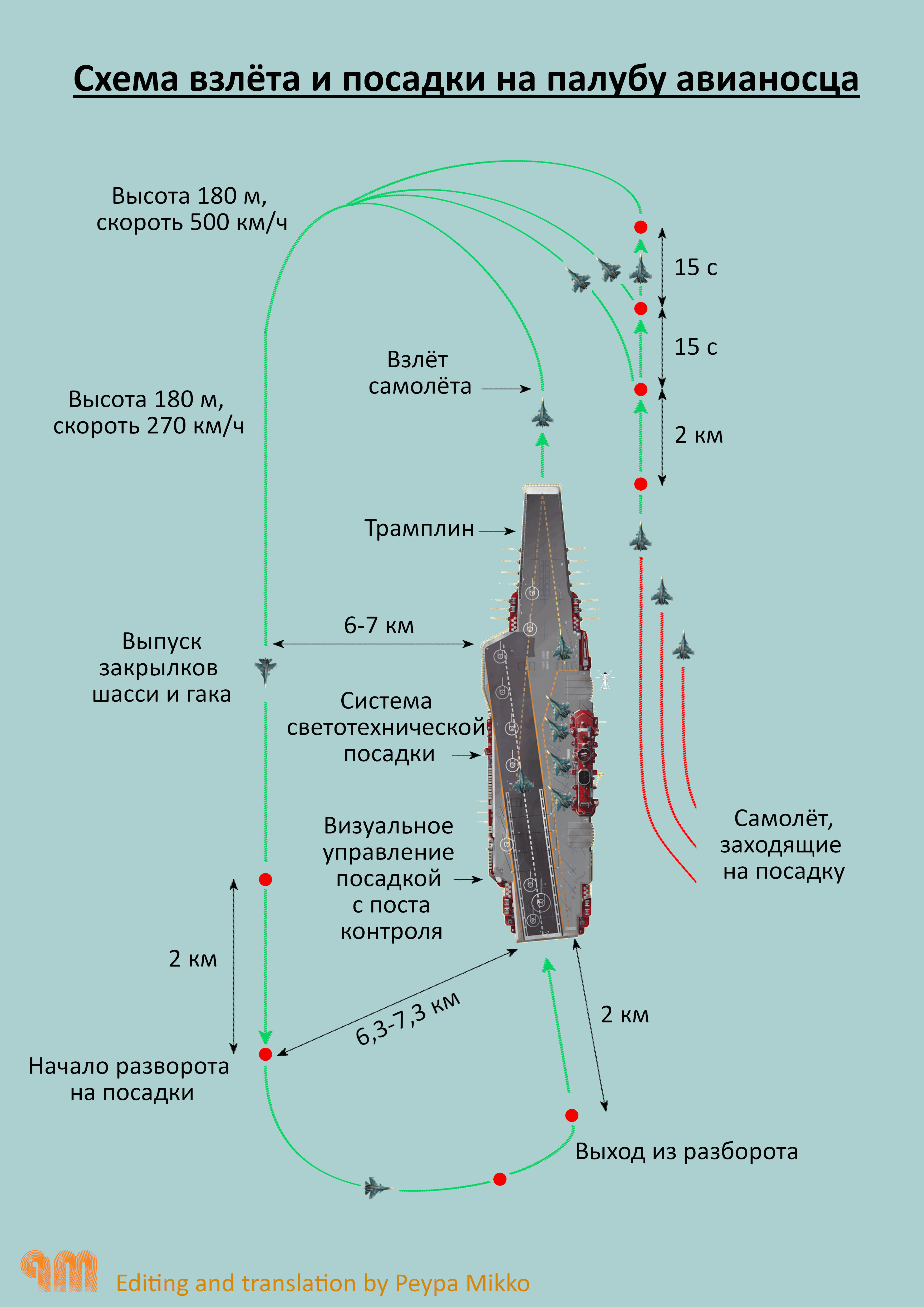

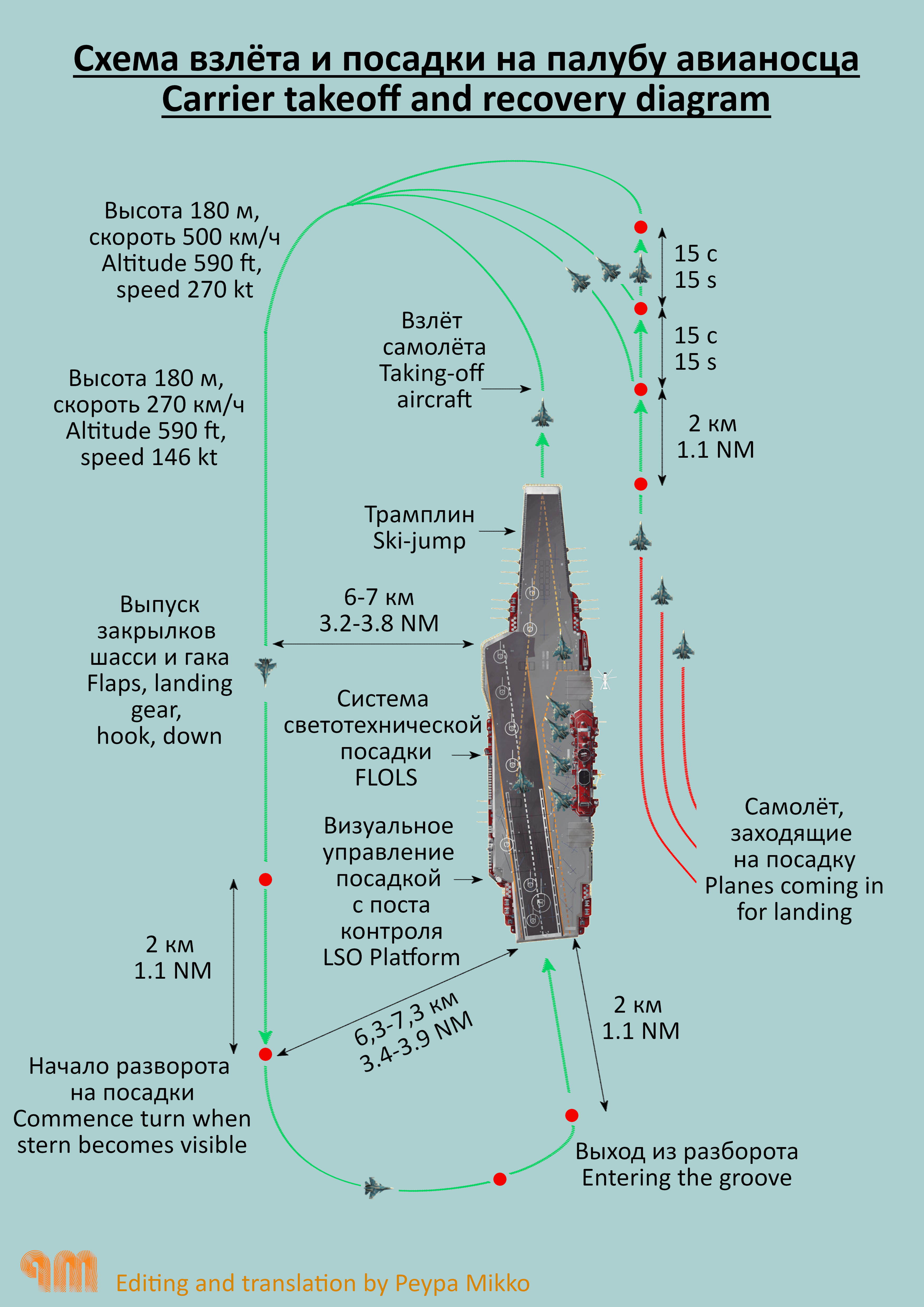

This is a Russian carrier takeoff and recovery diagram for the Su-33, in Russian and English (3 versions : EN+RU, EN, RU).
I saw the original diagram in Command T's youtube video, and I redrew it with GIMP software.
I used PNG pictures from the Kuznetsov, the Su-33, the Ka-27.
Legends and units are both in Russian/metric system and English/imperial system.

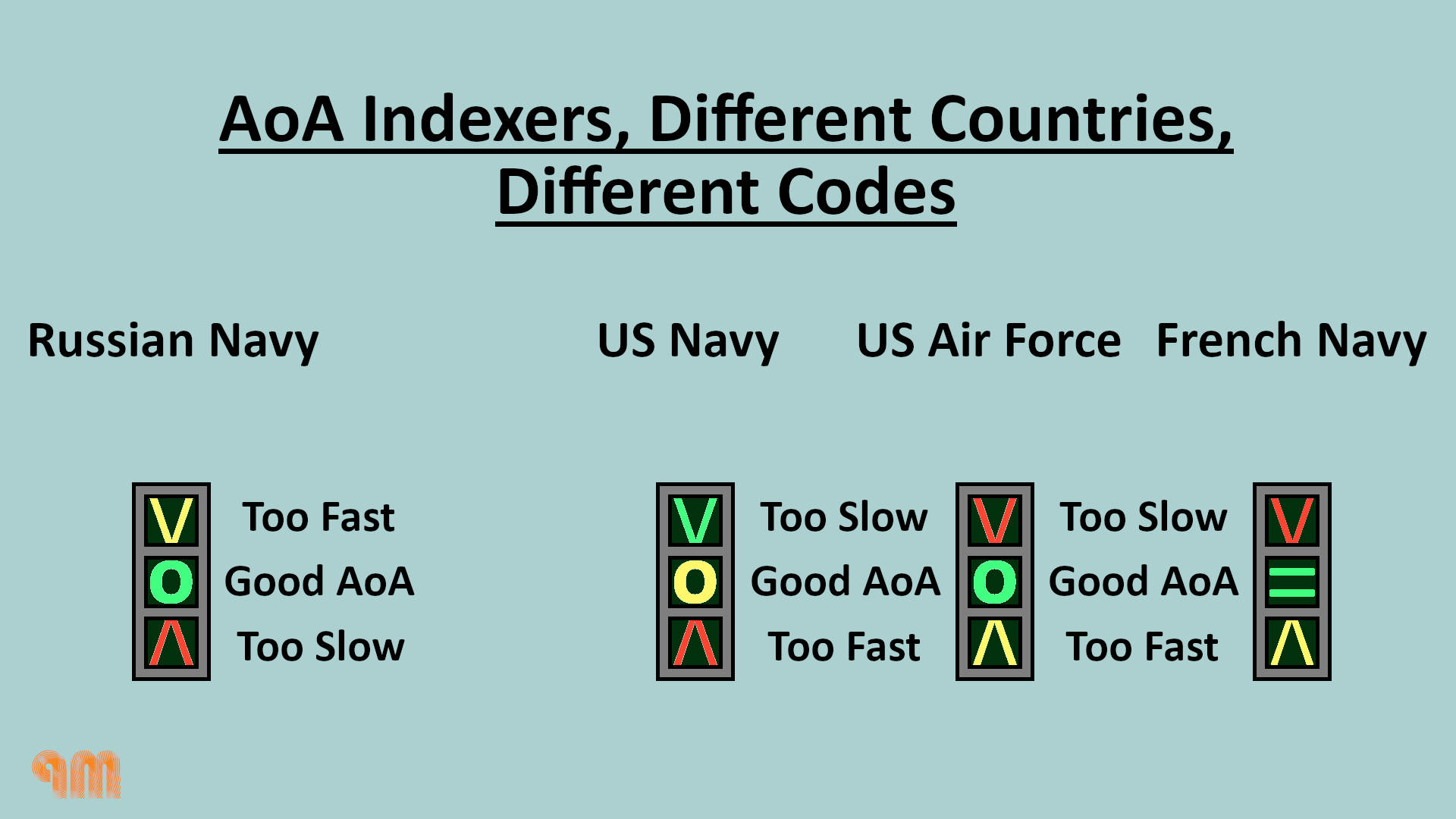

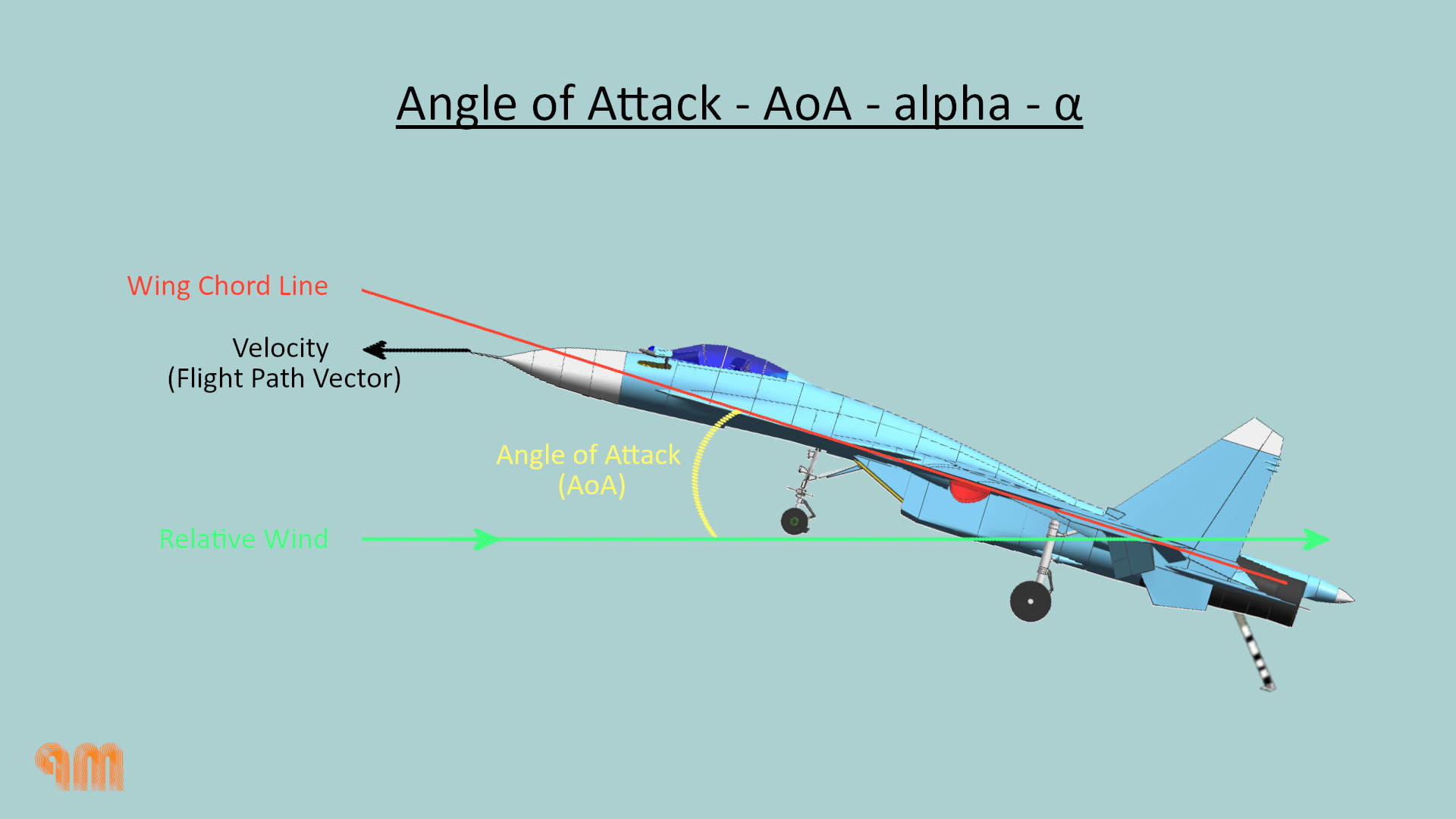

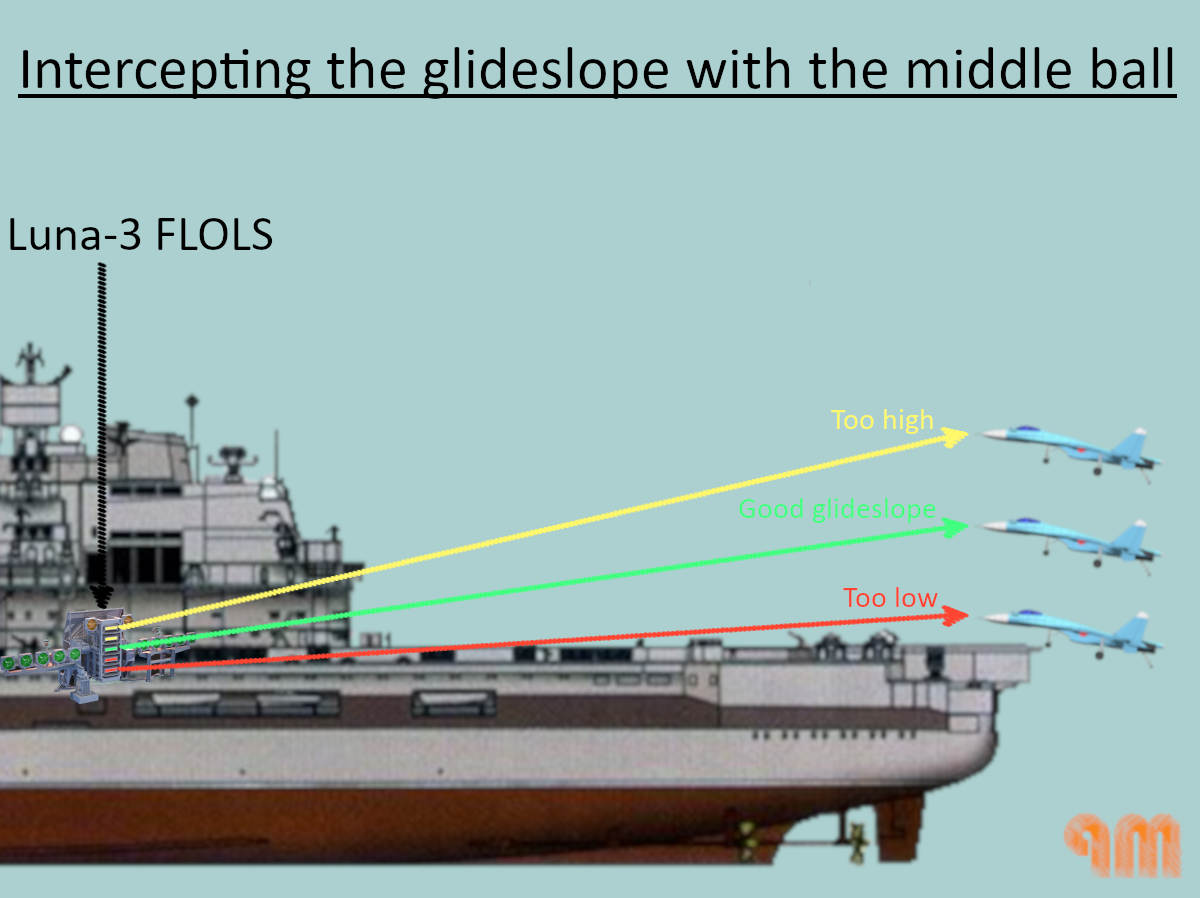

I added some theoretical schemes about carrier landing.
