Kneeboards for F-5E-3 Tiger II for startup procedures and air-to-air missile, unguided bombs and rockets, and cannon employment
These are not official procedures, just what I've put together as a quick reminder on startup procedures, and how to employ air-to-air missiles, unguided bombs and rockets, and cannon on the F-5E-3 (after not flying it for a while). Kneeboards included:
F-5E - AIRCRAFT STARTUP.png

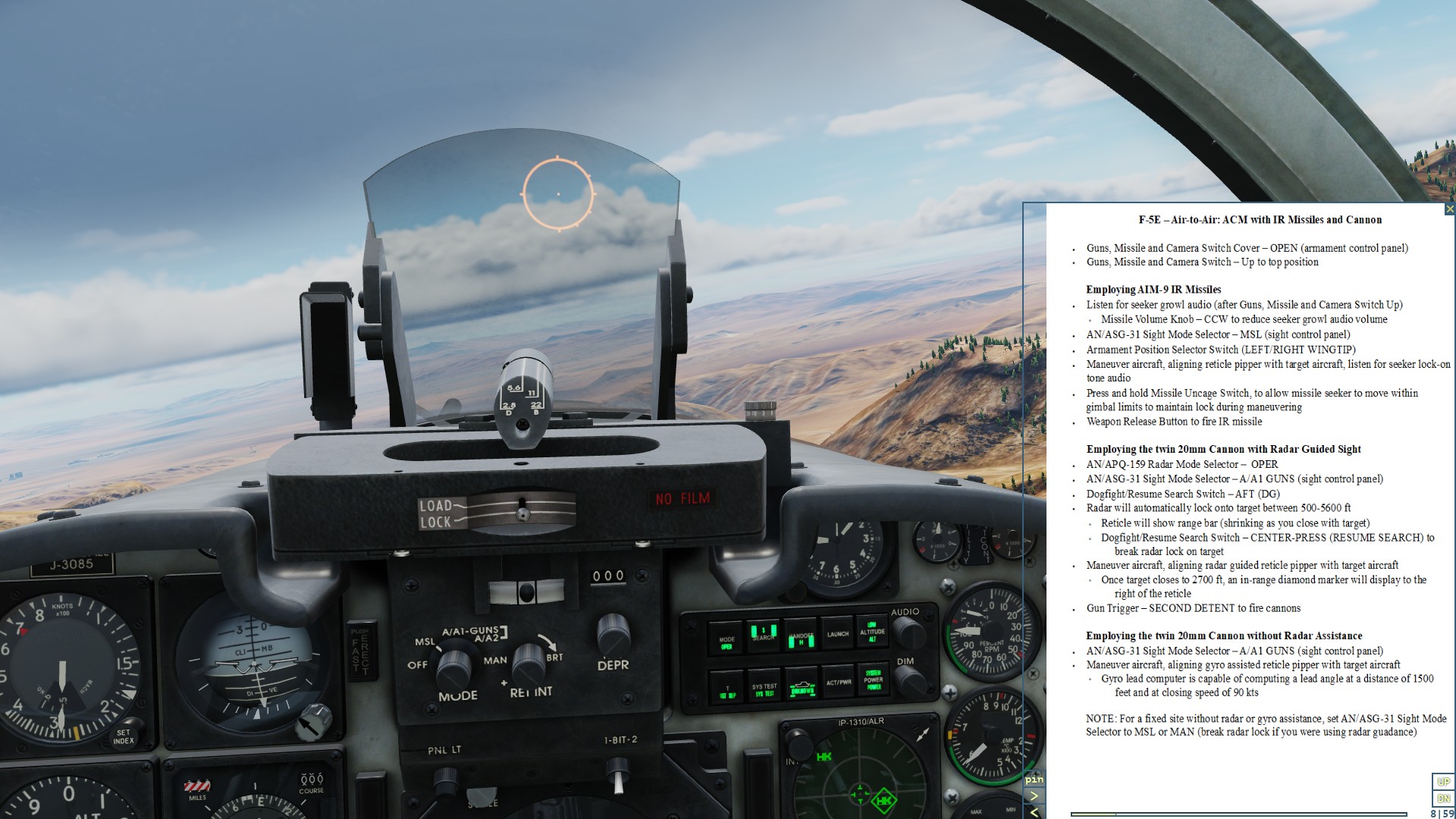

F-5E - AIR-TO-AIR ACM IR MISSILES AND CANNON.png

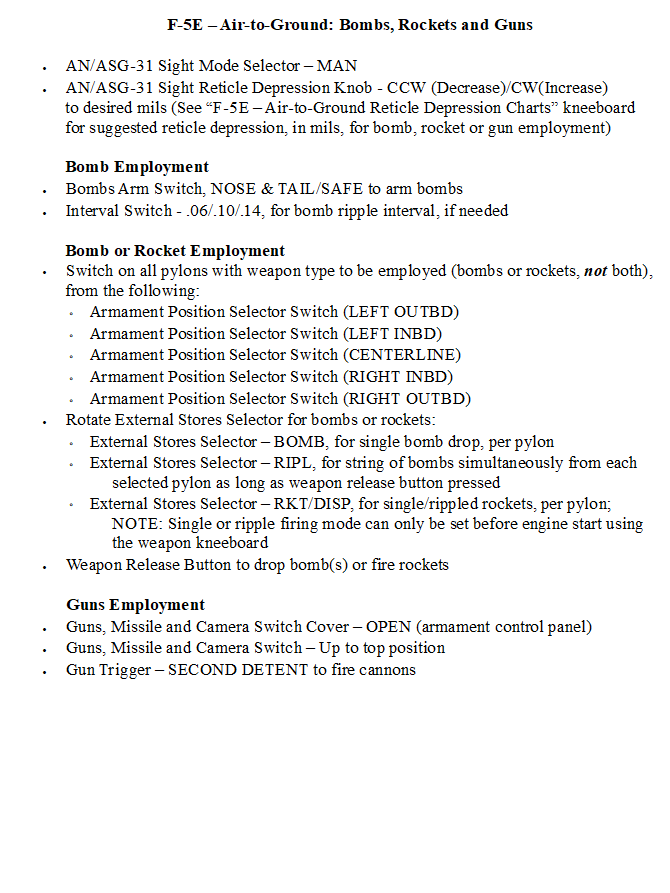

F-5E - AIR-TO-GROUND BOMBS ROCKETS GUNS.png
F-5E - AIR-TO-GROUND RETICLE DEPRESSION CHARTS.png
NOTE:
The F-5E kneeboards need to be placed in the F-5E Kneeboard folder, for example:
C:\Users\<your name>\Saved Games\DCS.openbeta\Kneeboard\F-5E-3
Enjoy!
AKA_Relent
(ED forums: 609_Relentov)
============================================
Update: 12/12/2025: Upd ated aircraft startup kneeboard:
F-5E - AIRCRAFT STARTUP.png
Added steps to turn on oxygen at normal setting, RWR power, radar to standby, se t sight mode and minor clean up (e.g. removed the steps for connecting/disconnecting electrical power, as not needed)
============================================
Update: 12/9/2025: Added an aircraft startup kneeboard, and updated another kneeboard:
F-5E - AIRCRAFT STARTUP.png
New slightly abbreviated (e.g. does not include cross bleed start) startup kneeboard, based on the procedure in the DCS F-5E-3 Flight Manual
F-5E - AIR-TO-AIR ACM IR MISSILES AND CANNON.png
Added additional notes regarding certain AIM-9 versions that have no lock tone, or do not have a seeker that uncages
