HOTAS Charts and Kneeboards for the Mudhen describing what each control does, both front and rear cockpits!

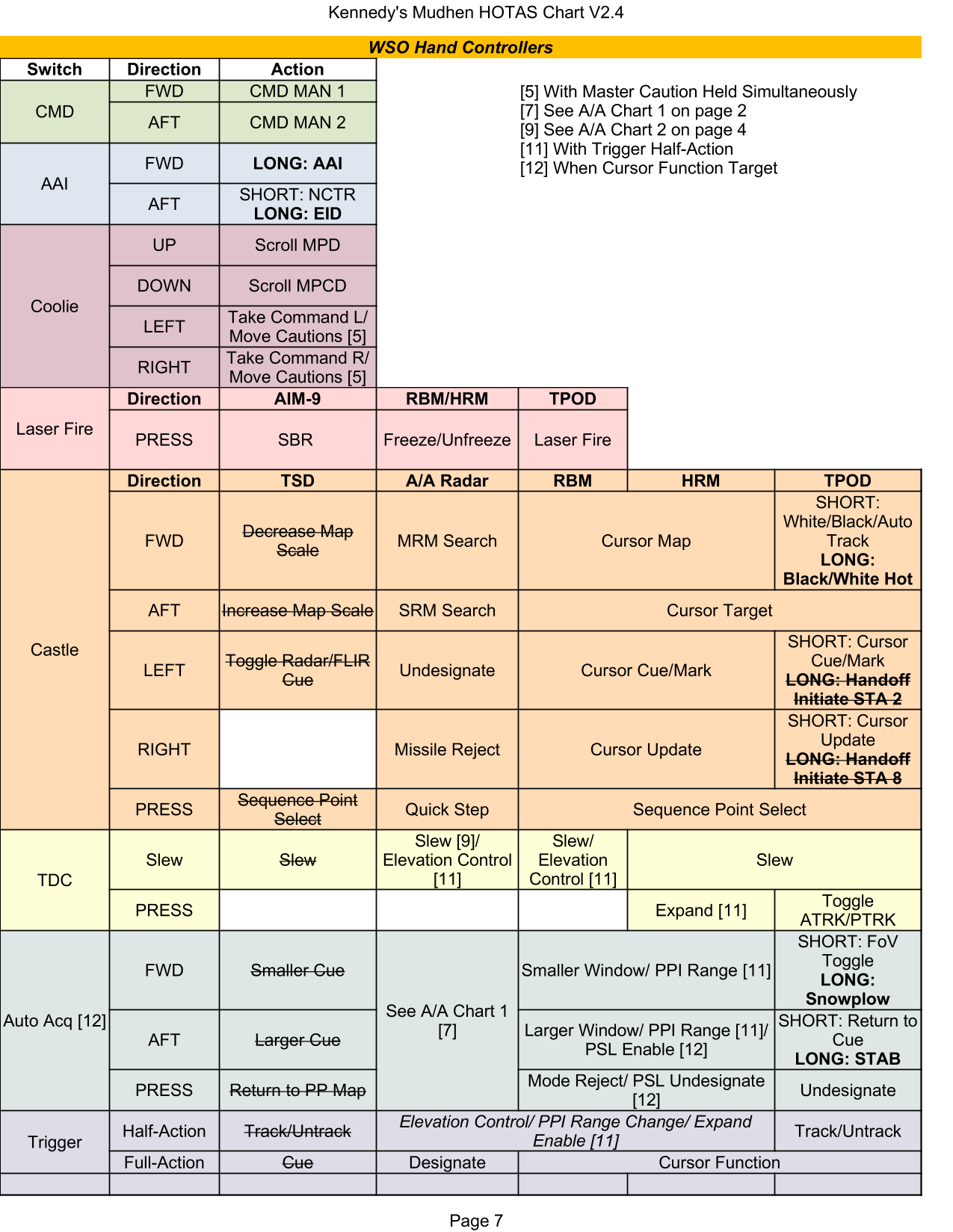

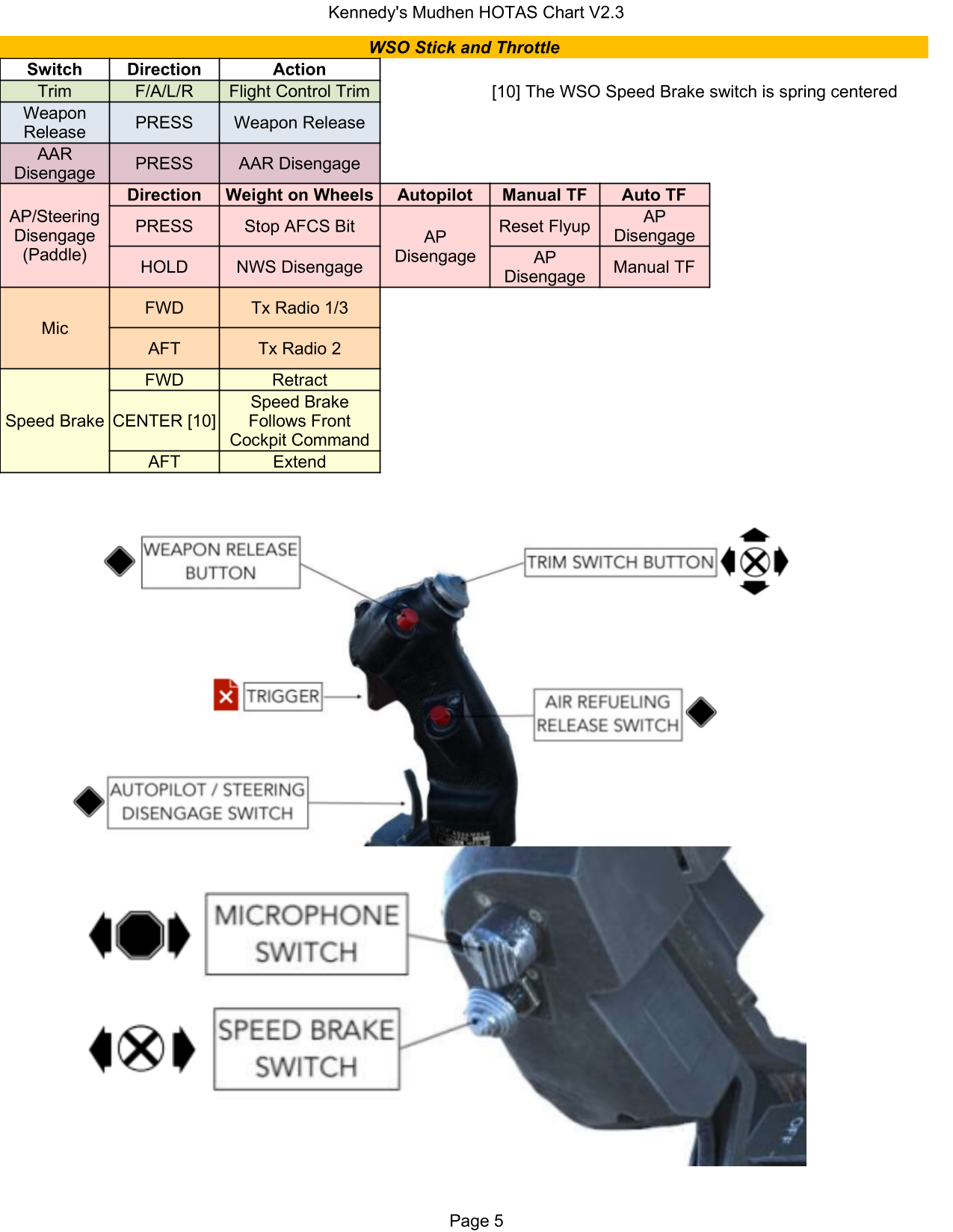

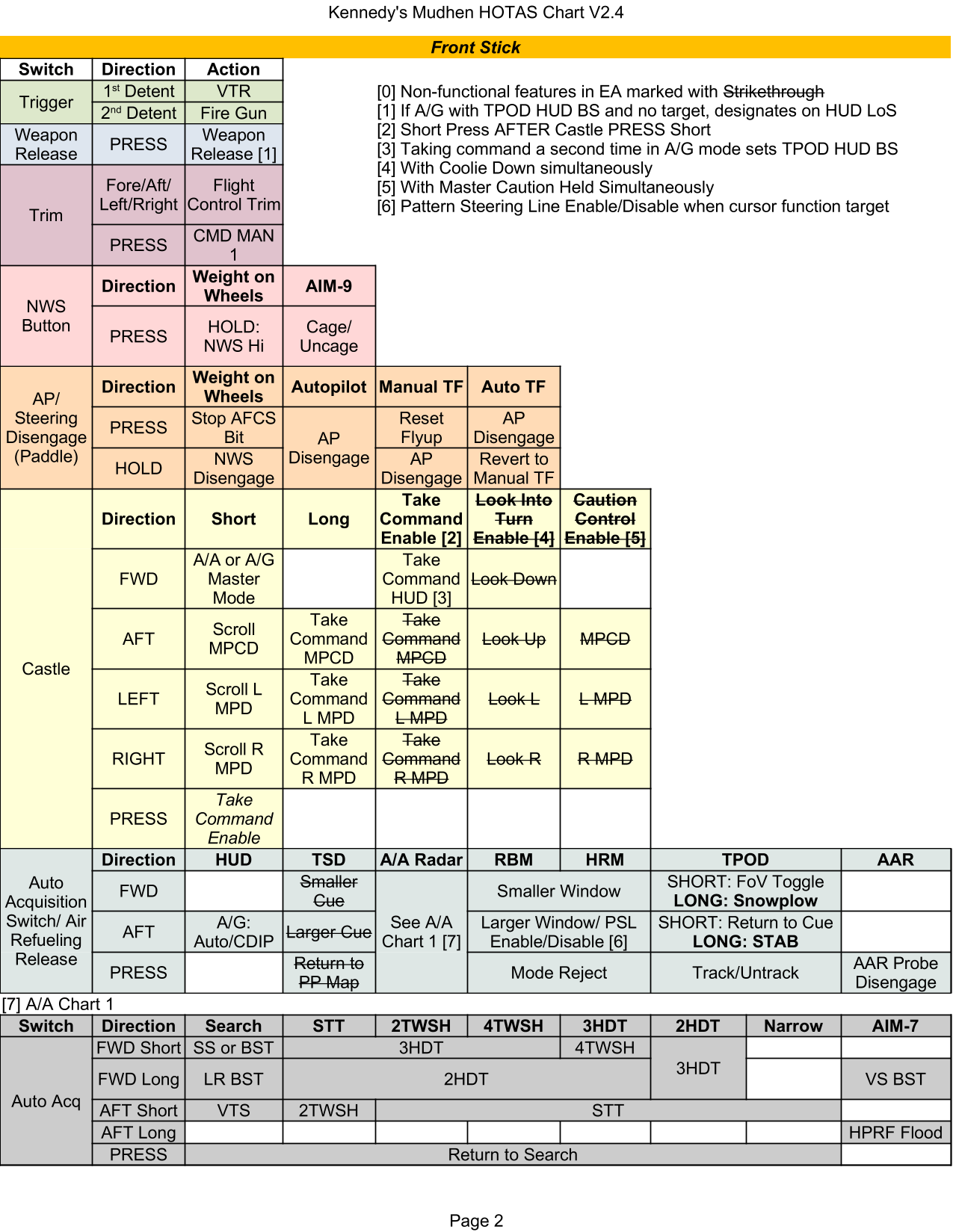

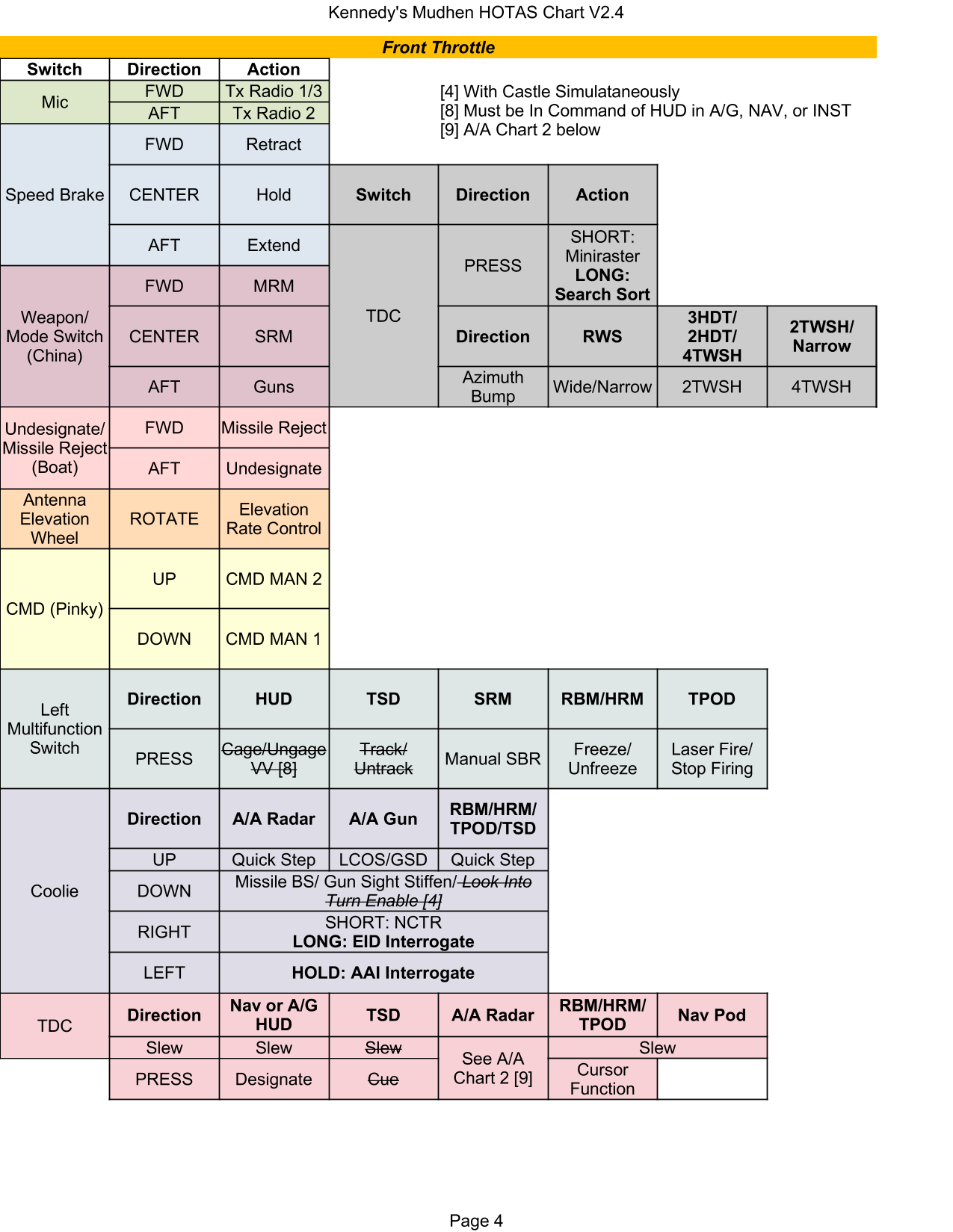

This information is scattered across the Razbam manual, so I sorted thru it all and made a series of charts detailing the function of ALL the HOTAS binds in the Razbam F-15E. This is NOT a device profile, nor is it advice on how to bind the HOTAS to your set-up. This is simply a reference of what each control does in the jet.
Now with kneeboards!
Feel free to leave feedback if you find errors or have suggestions.
Enjoy!
- "Sniper 4-2 | Kennedy" from the Hoggit discord
INSTALL:
There are 3 things in the zip. A README.txt file, a PDF file, and a folder.
The PDF file is intended for reading out of game, or on second monitor.
The folder is a kneeboard folder. Simply place the "F-15ESE" folder inside your "...Saved Games\DCS.openbeta\Kneeboard" folder. If your Kneeboard folder doesn't exist, create one.
Changelog:
26 Feb 2024 - V2.4
* Updated AAI/EID binds (Thanks again Stryker990)
3 Jan 2024 - V2.3
* Added WSO TDC Depress ATRK/PTRK Toggle (Thanks Stryker990!)
8 December 2023 - V2.2
* Discontinued Landscape Version due to redundancy
* Updated WSO Castle Binds
* Updated TGP Auto Acq Binds
* Updated EA Non-Functional Features
4 July 2023 - V2.1
* Added Strikethrough to non-functional items
* Simplified WSO Trigger Half-Action and Cursor Function Target Notes
* Another DOWN command renamed to PRESS
* Clarified PSL Enable/Disable
* Added notes about A/G HUD Designation
* Reorganized Changelog and Notes
26 June 2023 - V2.0
* Added Portrait orientation. Kneeboards are now Portrait orientation
* Removed redundant AIM-7 Auto Acq binds
* Simplified A/A Chart 2 and RBM/HRM/TPOD TDC
26 June 2023 - V1.2
* Renamed several button actions from DOWN to PRESS
26 June 2023 - V1.1
* Initial kneeboard release (not pretty but works)
26 June 2023 - V1.0
* Initial public release
