Kneeboards for AV-8B Night Attack V/STOL for guided weapon employment, and other weapons.
These are not official procedures, just what I've put together as a quick reminder on how to employ various guided weapons on the AV8B/NA (after not flying it for a while). Kneeboards included:

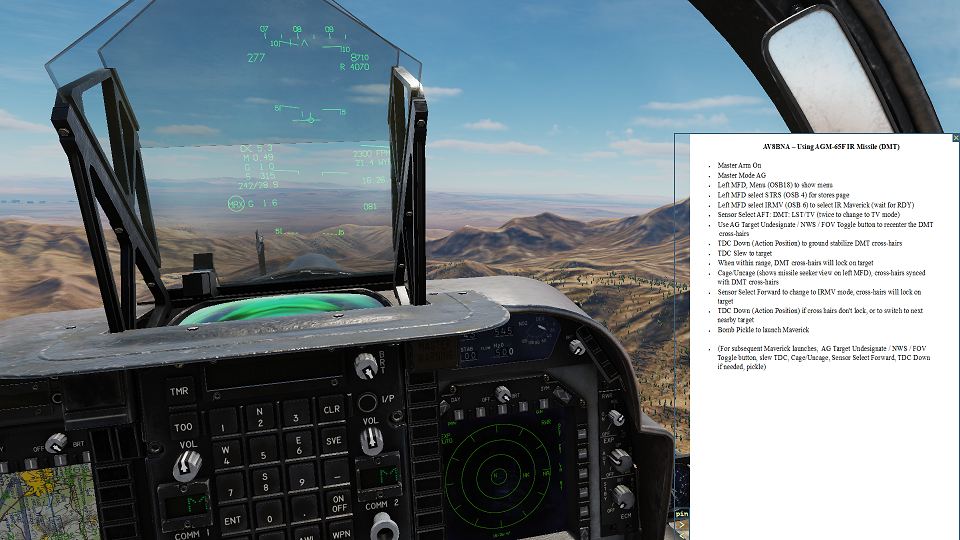

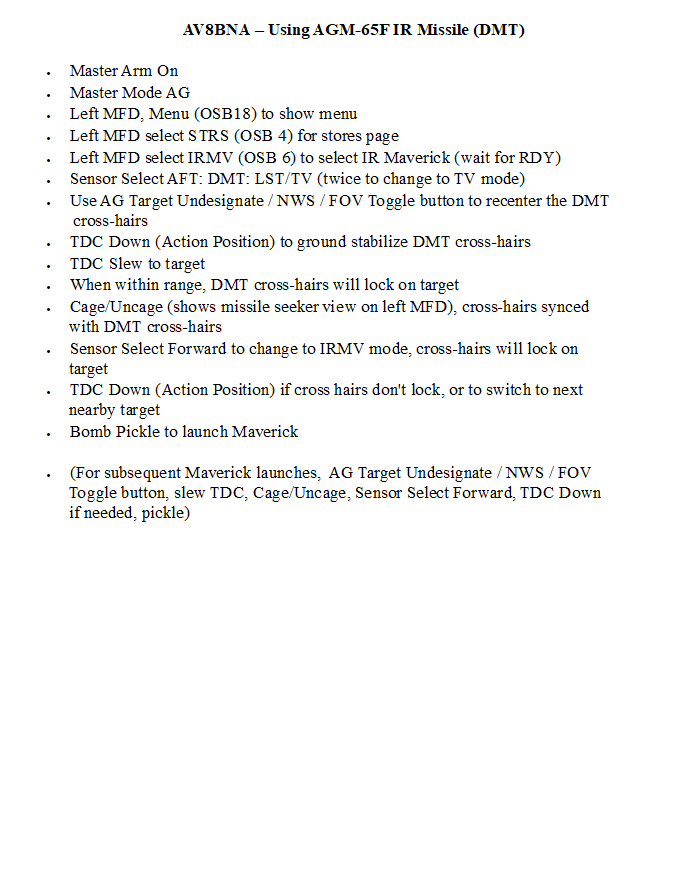

AV8BNA - AGM-65F IR DMT.png
AV8BNA - AGM-65F IR.png
AV8BNA - AGM-65L LZ TPOD.png
AV8BNA - AIM-9 AGM-122 GUN.png
AV8BNA - APKWS TPOD.png
AV8BNA - GBU-12 TPOD.png
AV8BNA - GBU-38 JDAM PREPLAN ATHS.png
AV8BNA - GBU-38 JDAM TOO TPOD.png
AV8BNA - RIPPLE GBU-38 JDAM TOO TPOD.png
The AV8BNA kneeboards need to be placed in the AV8BNA Kneeboard folder, for example:
C:\Users\<your name>\Saved Games\DCS.openbeta\Kneeboard\AV8BNA
Enjoy!
AKA_Relent
(ED forums: 609_Relentov)
============================================
Update 2/18/2024: Added the following kneeboard for using the AIM-9 Sidewinder and AGM-122 Sidearm, along with the GAU-12 gun pod in both air-to-air and air-to-ground modes:
AV8BNA - AIM-9 AGM-122 GUN.png
============================================
Update: 2/28/2023: Updated the following two kneeboards for JDAMs, adding a step to briefly fire the laser for more accurate target position coordinates when using the TPOD:
AV8BNA - GBU-38 JDAM TOO TPOD.png
AV8BNA - RIPPLE GBU-38 JDAM TOO TPOD.png
Also added the following kneeboard for JDAMs, for using the Automatic Target Handoff System (ATHS), where target selection is performed by using the F10 Map, and targets are automatically loaded into the flight plan:
AV8BNA - GBU-38 JDAM PREPLAN ATHS.png
============================================
Update 2/25/2023; Updated some of the kneeboards that use the TPOD with laser guided weapons, to add a step to change the laser code, if needed. This is due to the AV-8B setting the laser code to 1111 with weight on wheels, so you should change the code (e.g. 1688) prior to employing laser guided weapons. Also made some minor cosmetic changes.
============================================
Update: 2/28/2022; After testing with the Harrier, I added a step to use TDC Action/No Action Toggle to ground stabilize TPOD when using snowplow mode. Updated the following kneeboards that use the TPOD:

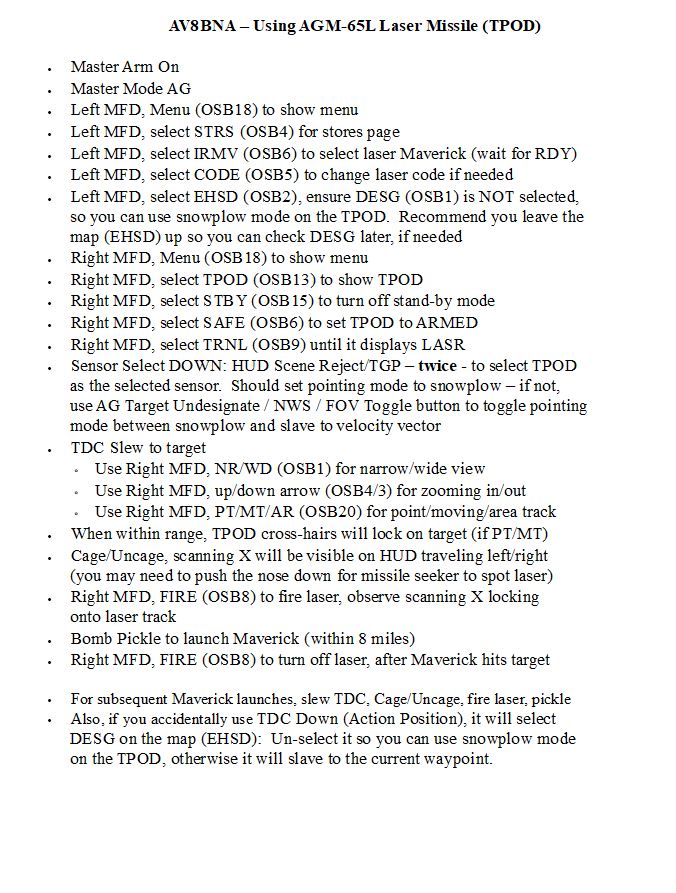

AV8BNA - AGM-65L LZ TPOD.png
AV8BNA - APKWS TPOD.png
AV8BNA - GBU-12 TPOD.png
AV8BNA - GBU-38 JDAM TOO TPOD.png
Inspired by Tricker's JDAM ripple YouTube video, I added a kneeboard for rippling JDAMS in TOO mode using the TPOD:
AV8BNA - RIPPLE GBU-38 JDAM TOO TPOD.png
