Landing & Overhead Trainer (w/scoring system) (Persian Gulf)

Type - Utility
Uploaded by - joacofz6
Date - 08/31/2021 02:59:34
(Updated Sept 14 2021)

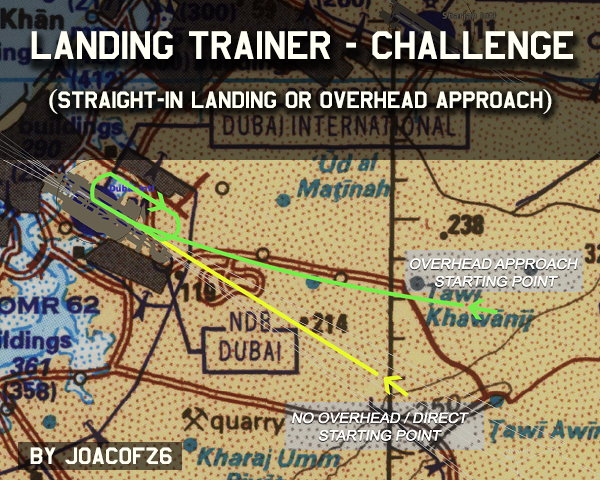

2 in 1 mission for landing training in Persian Gulf:

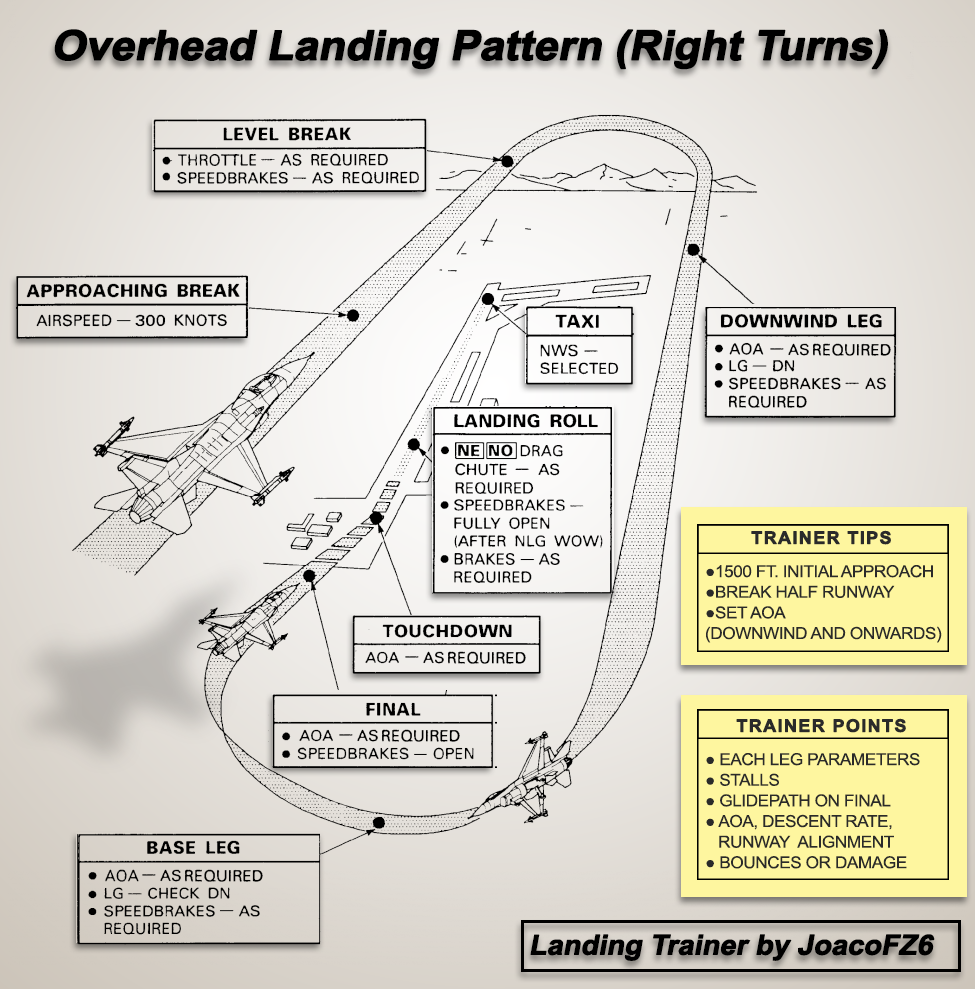

-Overhead approach
-On final, following glidepath

Scoring based on touchdown and approach parameters:
-AoA / Alt / Speed / Descent Rate @ touchdown / runway 2 axis alignment / etc

Choose "FINAL" or "OVERHEAD" slot to fly desired one.
Other missions:
https://www.digitalcombatsimulator.com/en/files/filter/user-is-joacofz6/apply/

(Updated Sept 14 2021)
-Aircraft params such as AoA, stall AoA. descent rate, and max speed at land are now customizable through Mission Editor.
-Airport max allowed speed customizable through ME
-Sampling rate for data acquisition also modifiable (if current sampling rate is too heavy for your PC)

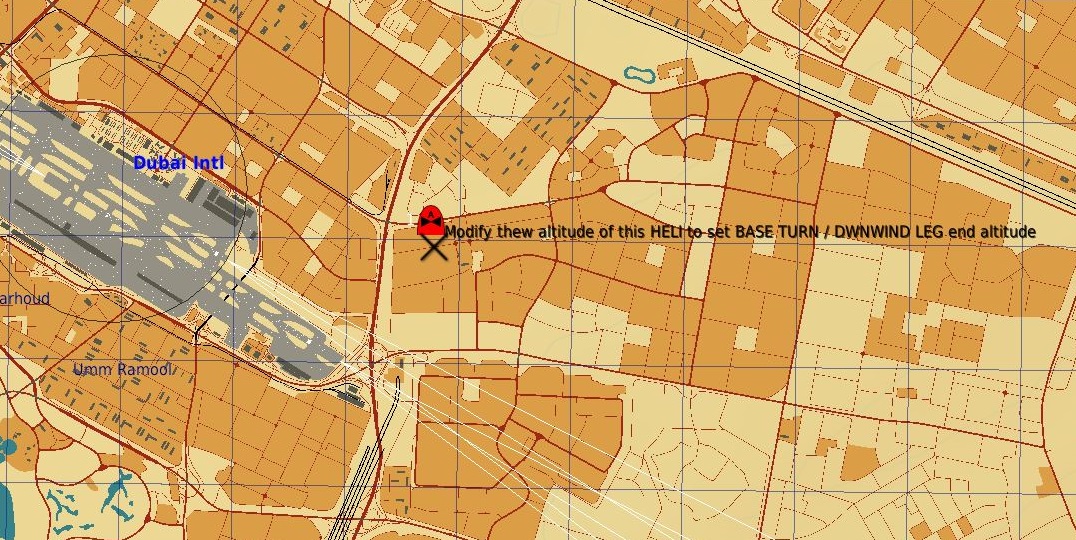

-Base Turn / Downwind Leg end Altitude is customizable (edit HELI altitude through mission Editor
-you can turn smoke on to visualize turning points

This was created as a trainer/challenge for field landings.
You can practice overhead approach or straight in landings. Persian Gulf Map is required.

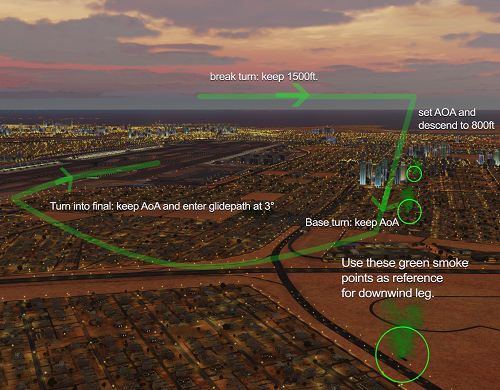

You will hear audio cues for the overhead maneuver, and also green smoke indicating "ideal" downwind leg position.

Scoring is "inspired" by Flight Simulator FS2020 landing challenges system. Points are multiplied by "descent rate" factor
Deviation from each ideal flight parameter is penalized.
It samples flight data during each phase/leg, and averages the deviation from ideal param value.

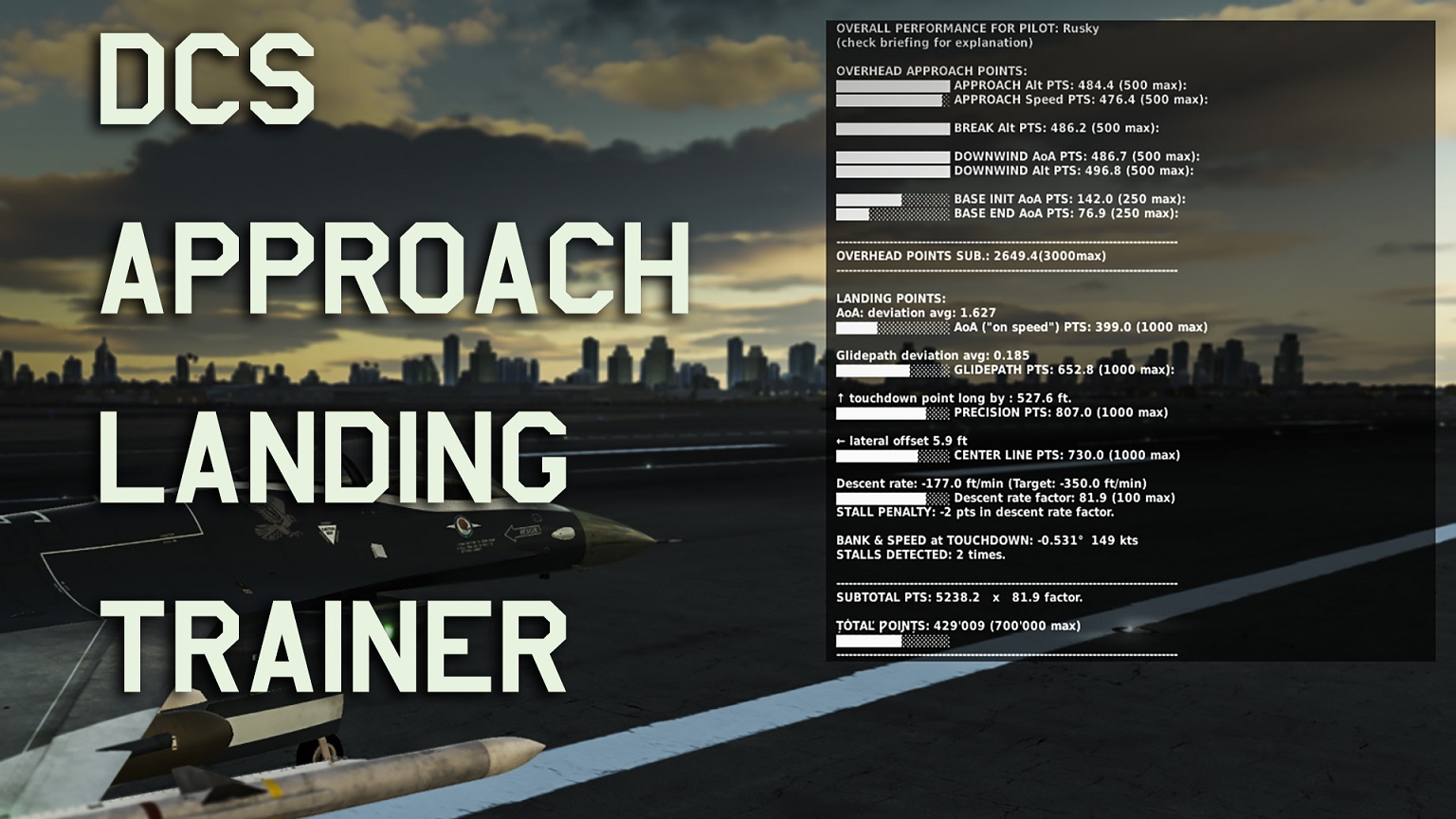

Once landed, you receive the scoring according to your performance.

Stalls, aircraft damage and bouncing after touchdown are considered too.

Created using MOOSE, LUA, a lot of math and love to the sim.
Thanks @Topper for point system improvement!


Inspired by "Bankler's CASE I", but for non-naval operations in this case. (pun intended!)

LIST OF AVAILABLE AIRCRAFT:
F-16 VIPER
M2000C MIRAGE
SU-27 FLANKER
A-10A & A-10C II
SU-25T
F-14 TOMCAT
F-18 HORNET
MIG 21
F-5
P-47
P-51 (TF-51)
BF-109

Let me know any problem.
Enjoy!

Demo of both challenges:
1) OVERHEAD:
https://youtu.be/OV181LItSfg

2) Straight-in:
https://youtu.be/7s2cKsKBV7E
